HYDRODUCT® drainage composite
Robust membrane protection for efficient water deflection
Roofs, green roofs, basements, retaining walls, tunnels, and more—the one thing that these have in common is the risk of leaks. GCP waterproofing membranes are industry leaders, but drainage composites add even more durability. There's a HYDRODUCT® drainage solution to complement every form of our waterproofing membranes—and they're a critical component of any well designed and complete waterproofing system.
HYDRODUCT® Product Documents
|Product Name||Product Data Sheet|
|HYDRODUCT® Horizontal Drainage & Irrigation Sheets|
|HYDRODUCT® Vertical Drainage Sheets|
- Product Name
- Key Benefits
- Applications Type
Hydroduct® CF is a highly efficient, cost effective drained cavity former.
- Reduces the risk of water ingress
- Allows inspection and leak remediation before installation
- Easy to install
HYDRODUCT® drainage sheets are pre-fabricated geocomposites comprising studded polystyrene drainage cores covered with polypropylene filter fabrics.
- Polystyrene has minimal creep under long term loading - drainage capacity maintained
- Fully compatible with GCP waterproof membranes
- Provides additional factors of safety against water penetration through roof decks
HYDRODUCT® drainage sheets are pre-fabricated geocomposites comprising studded polystyrene drainage cores covered with polypropylene filter fabric.
- Polystyrene resists creep under long term loading - drainage capacity maintained
- High flow capacity - can drain 5.29 litres/sec/m when backfilled to a depth of 5 m
- Geotextile filter fabric prevents soil particles entering drainage core - minimises risk of clogging
A versatile drainage portfolio
HYDRODUCT® products are designed for a variety of applications, from green roofs to basement subfloors. Here are just a few of the HYDRODUCT® products currently available.
Designed for all horizontal applications, HYDRODUCT® 660 collects and transports water to drainage outlets. This high strength nonwoven geotextile is designed to protect the drainage composite during and after construction. In addition, the material enhances waterproofing by draining 17 gallons per minute per foot of width (206 litres per minute per metre of width). Lastly, the material makes life easier for contractors by being lightweight, easy to instal, and compatible with both sheet and waterproofing membranes.

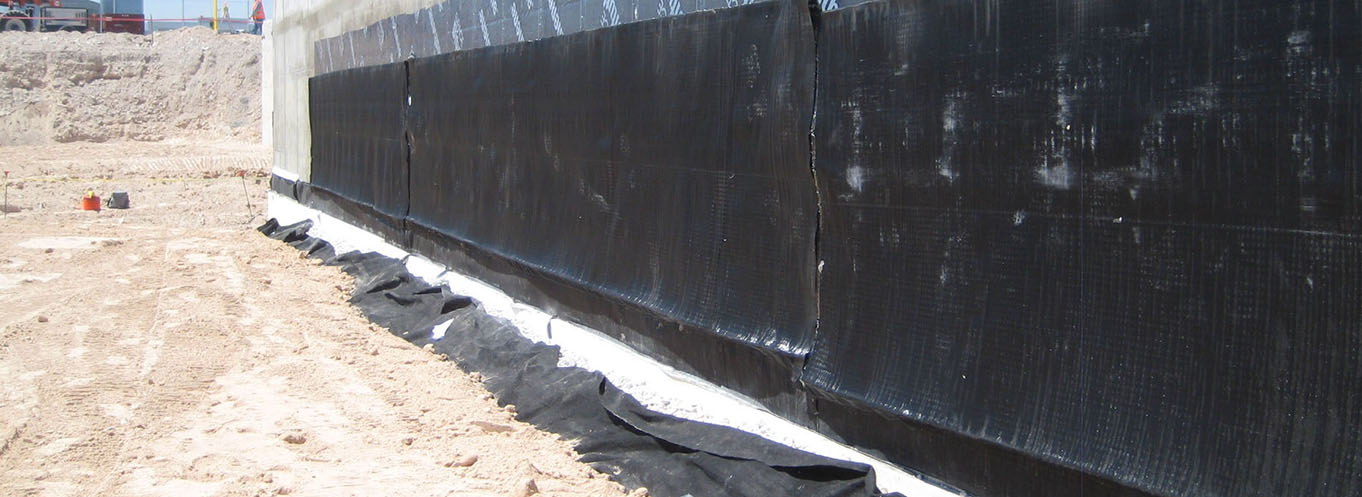

HYDRODUCT® 200 is specifically designed for use on substructures—retaining walls, foundation walls, bridges, tunnels and planters. HYDRODUCT® 200 can be applied both vertically and horizontally—the rot-proof geotextile performs just as well either way.
HYDRODUCT® Green Roof Composite
Designed for horizontal green roofs, this HYDRODUCT® product shields roof decks from both water and root penetration. The barrier is treated with a natural root inhibitor, and is specifically shaped to redirect roots away from the drainage core. Additionally, the system is designed to capture and store excess water from the growth medium until it can be re-absorbed. Compatible with both the PROCOR® and BITUTHENE® deck systems, this system supports gardens and eco-friendly buildings while protecting concrete at the same time.
