BITUTHENE® post-applied waterproofing

Proven Performance from the World’s Most Trusted Post-applied Waterproofing Membrane.

Plazas and parking decks. Inverted roofs, green roofs and elevated decks. Basement walls. Tunnels, metro stations and infrastructure products. For each of these applications and more, there's a BITUTHENE® product developed by GCP. BITUTHENE® is the most trusted post-applied waterproofing membranes. Its effectiveness has been proven time and again in countless projects. Long lasting, versatile and easy to install, BITUTHENE® gets the job done.

Documents

BITUTHENE® Product Documents

Product Name Product Data Sheet
BITUTHENE® 3000HC
Product Data Sheet
BITUTHENE® 3000HC
Product Data Sheet
BITUTHENE® 5000
Product Data Sheet
BITUTHENE® 6000
Product Data Sheet
BITUTHENE® 8000 HC
Product Data Sheet
BITUTHENE® CP
Product Data Sheet
BITUTHENE® Edgeguard Tape
Product Data Sheet
BITUTHENE® LM (E)
Product Data Sheet
BITUTHENE® Mastic
Product Data Sheet
BITUTHENE® Primer B1
Product Data Sheet
BITUTHENE® Primer B2
Product Data Sheet
BITUTHENE® Primer B3
Product Data Sheet
Products & Accessories

Products

  • Product Name
  • Description
  • Key Benefits
  • Applications Type
BITUTHENE® 3000HC
Description

BITUTHENE® 3000HC (Hot Climate grade) is the 1.5 mm thick waterproofing membrane made of BITUTHENE® advanced self adhesive technology.

Key Benefits
  • Fast, easy, cold applied
  • Safety
  • Reduces installation risk
Application Type

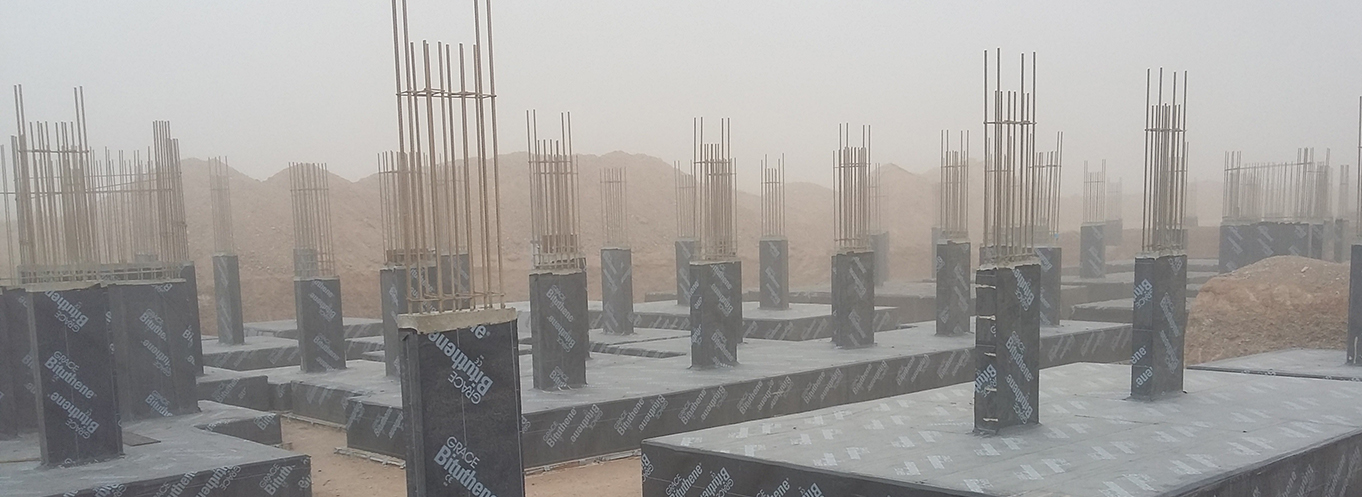

  • For basements and substructures in hot climates.
BITUTHENE® 3000HC
Description

BITUTHENE® 3000HC (Hot Climate grade) is the 1.5 mm thick waterproofing membrane made of Bituthene advanced self adhesive technology.

Key Benefits
  • Gas resistant
  • Reduces installation risk
  • Full width cross lamination HDPE film
Application Type
  • Used for elevated temperatures of up to +55 °C.
BITUTHENE® 5000
Description

Composite membrane incorporating high performance moisture and water resistant rubberised asphalt with tough, puncture and heat resistant polypropylene reinforcing mesh. Specially developed for use under a hot applied asphalt concrete wearing course

Key Benefits
  • Cold applied
  • Flexible
  • Robust
Application Type
BITUTHENE® 6000
Description

BITUTHENE® 6000 is ideal for waterproofing structural concrete and civil works such as airports, rapid transit systems, power plants, environmental projects and earth sheltered structures and may be used in lieu of BITUTHENE® 3000 on basements and substructures that require extra tough waterproofing protection.

Key Benefits
  • Capable of resisting a hydrostatic head when fully supported
  • Provides dimensional stability, high tear strength, puncture and impact resistance
  • Simple, reliable, low labour cost with benefit of site programmed installation
Application Type
  • Walls
  • Underground roof slabs
BITUTHENE® 8000 HC
Description

BITUTHENE® 8000 HC Waterproofing Membrane combines the proven BITUTHENE® adhesive technology with a unique, grey-coloured carrier film to provide superior performance and easier installation.

Key Benefits
  • Water and moisture proof
  • Gas-resistant
  • Non-metalised film
Application Type
  • Used horizontally or vertically to protect basements and other critical sub-structures
  • Suitable for flat decks such as inverted roofs, elevated or grade level podiums or plaza decks
BITUTHENE® CP
Description

BITUTHENE® CP is a cold applied, flexible waterproofing system that combines a cross-laminated highly durable HDPE carrier membrane with GCP’s unique self-adhesive technology.

Key Benefits
  • Wide kick-out roll
  • Protective packaging
  • Double strength laps
  • Easy to peel release paper
Application Type
  • Foundations and footings
  • Bridge abutments
  • Underpasses and culverts
  • Manholes and inspection chambers

BITUTHENE® Mastic
Description

BITUTHENE® Mastic is a cold applied one part solvent based rubberized bituminous mastic.

Key Benefits
Application Type
  • Seals BITUTHENE® membranes when terminated in concrete chases.
  • Seals edges of patches.
  • Seal edges of overlaps in detail areas.

Accessories

  • Accessory Name
  • Description
  • Key Benefits
  • Applications Type
BITUTHENE® Edgeguard Tape
Description

BITUTHENE® Edgeguard Tape is a specially formulated tape designed for applications where resistance to hydrocarbon contaminated soil is required. It is constructed of a 2 mil (0.05 mm) polyester film with a pressure sensitive, solvent resistant acrylic adhesive. The adhesive bond increases with age.

Key Benefits
  • Solvent resistant
  • System compatibility
  • Self-adhered
Application Type
  • Accessory
BITUTHENE® LM (E)
Description

BITUTHENE® LM (E) is designed to complement GCP sheet systems where liquid applied waterproofing is necessary to ensure watertight continuity. BITUTHENE® LM is a bitumen modified polyurethane sealant that cures to form a tough seamless rubber-like waterproof layer.

Key Benefits
  • Liquid applied
  • Waterproof
  • Tough rubber-like
  • Seamless
  • Chemically cured
  • Cold applied
  • PREPRUFE® and BITUTHENE® compatible
Application Type
  • pile terminations
  • pipe penetrations
  • membrane continuity through masonry
  • internal corners
  • difficult details
BITUTHENE® Primer B2
Description

Bituthene® Primer B2 is a rubber-based primer in solvent specially formulated to provide good initial adhesion of Bituthene® waterproofing membranes and GCP underlay. In addition, its patented formulation promotes the adhesion of Bituthene® membranes to green concrete and damp surfaces.

Key Benefits
Application Type

Accessory

BITUTHENE® Primer B3
Description

Bitumen based solvent primer for application to substrates prior to the application of BITUTHENE® self–adhesive waterproof membranes.

Key Benefits
  • High solids content - higher coverage per litre
  • Easy application by brush or roller
  • All temperatures above +5 °C
Application Type

Concrete, masonry, steel substrates

Overview

Flexible and powerful

BITUTHENE® is available in a number of grades to suit your project needs. Supplied as an easily-applied sheet, It can be cold-applied at temperatures as low as 15°C, and can be placed on a variety of concrete surfaces. Its robust waterproofing properties, combined with its ease of application, results in a contractor-friendly product that adds value to buildings.

Apply easily, anywhere

Although the chemical properties of BITUTHENE® make it suitable for a variety of applications, we have added mechanical innovations to further its ease of use and long-term viability.

  • RIPCORD® design lets workers easily split release liner for ease of positioning
  • Cold-applied membrane avoids risk of fire during installation due to the fact that flame and/or hot works are not required
  • Self-adhesive overlaps avoid leaky seams and eliminate the need for specialised equipment or training.
  • When used with primer, BITUTHENE® can easily be applied to damp or green concrete during time-sensitive construction, saving time and money for the project team.

Unparalleled water protection

Buildings change and settle over time, but BITUTHENE® accommodates those changes.

  • Robust film and specially formulated adhesive provide maximum water protection
  • Flexible yet strong membrane provides crack bridging capabilities and moves with concrete, accommodating minor settling
  • Controlled thickness ensures lack of variation

Get world-class technical services

With so many versatile applications, there’s a BITUTHENE® solution for nearly every project and design. We provides world-class technical services in order to make those limits even smaller.
